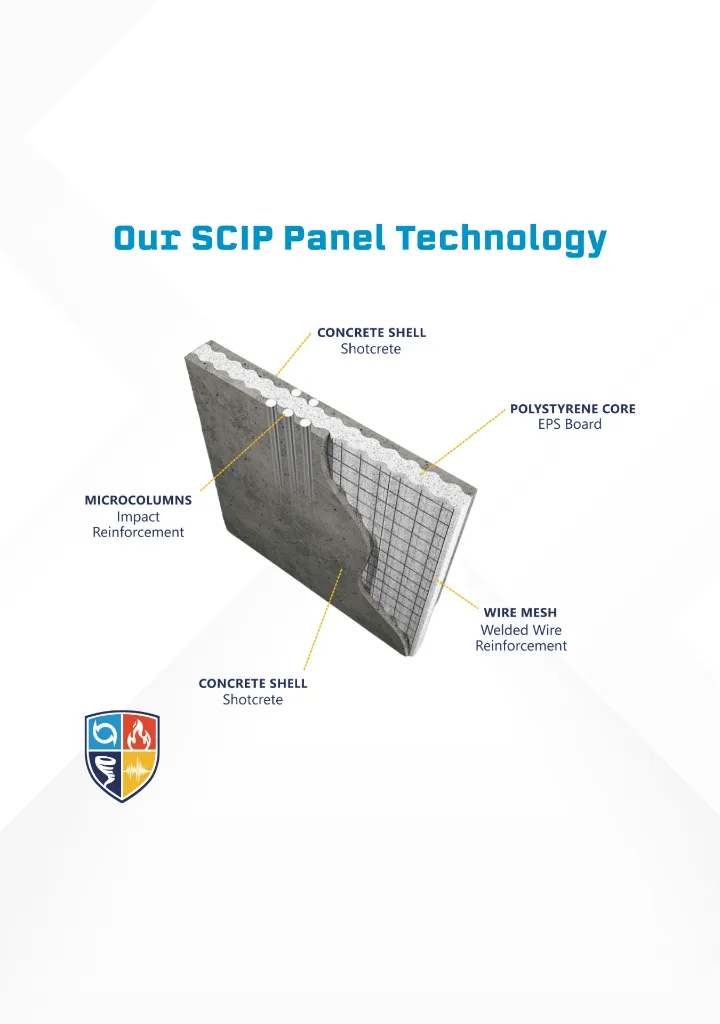

Expanded Polystyrene (EPS) Foam
Type I modified EPS Board - ASTM C578
Density 1 pound per cubic foot
Flame-spread index <=25
Smoke-developed index <= 450
Concrete/Mortar (applied in-situ)
Compressive Strength >2,500 PSI
Thickness >1”
Aggregate size < 5/8”
Slump > 2”
Wire Connector
11 gauge galvanized wire - ASTM A1064 Yield Strength: 115 ksi
Thermal coefficient (R Value)
F.hr.ft²/Btu
@25 °F | @ 40 °F | @ 70 °F
17.4 16.7 15.4
Acoustic coefficient (Cw)
42 dB

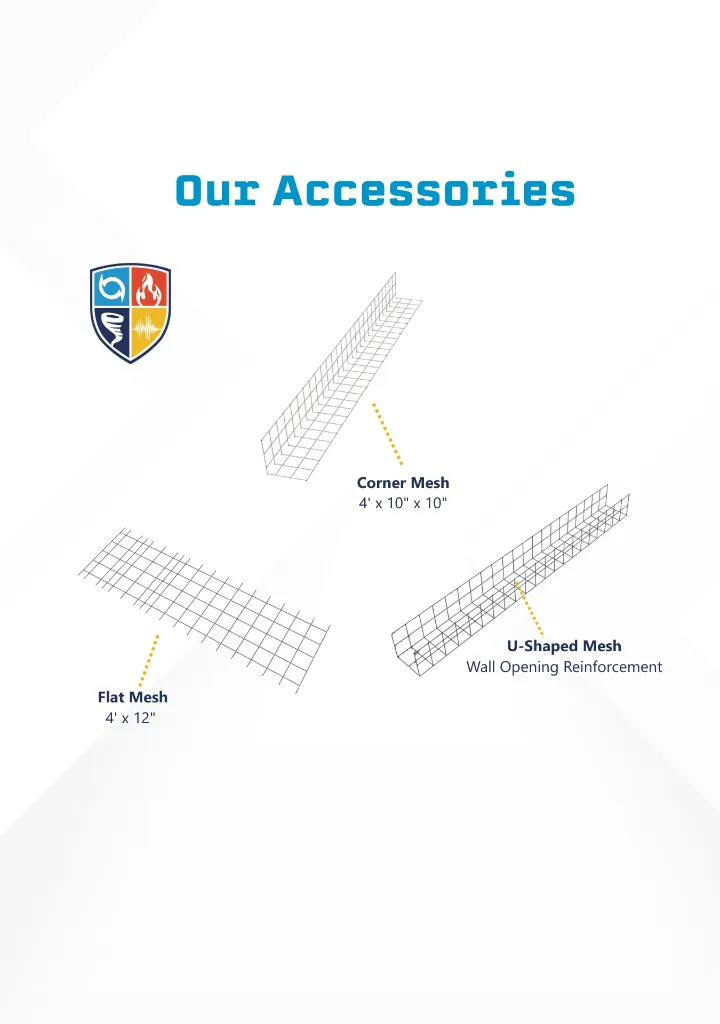

Wire-mesh Reinforcement
L 3.15” x T 2.95” 11 gauge galvanized wire - ASTM A1064
Yield Strength: 115 ksi
Weight
Panel sheet (lb/ft2): 1.01
Finished wall (lb/ft2): 21.50
